Panel Installation, Wiring, Testing, and Commissioning Support
Panel Installation, Wiring, Testing, and Commissioning Support
Site Installation services by ThreeDots Automation support panel mounting, cable dressing, field wiring, termination, loop checks, commissioning, and handover for automation projects.
Practical support from panel to plant floor - Our team helps ensure panels are installed correctly, field wiring is verified, and system commissioning is handled with proper checks and documentation.
Panel Mounting
Floor, wall, machine, and pedestal mounting support.
Field Wiring
Cable laying, dressing, glanding, ferruling, and termination.
Testing
Continuity checks, IO checks, loop testing, and device verification.
Commissioning: Power-up, PLC/HMI checks, drive trials, and handover support.
Get In Touch →Key Capabilities
Complete installation support for panel mounting, wiring, commissioning, and plant integration. Built with clear wiring, tested control logic, and service-friendly layouts for dependable industrial use.
%
Commissioning Readiness
Tested field wiring
%
Installation Quality
Clean site execution
- Panel Mounting: Floor, wall, machine, and pedestal mounting support.
- Field Wiring: Cable laying, dressing, glanding, ferruling, and termination.
- Testing: Continuity checks, IO checks, loop testing, and device verification.
- Commissioning: Power-up, PLC/HMI checks, drive trials, and handover support.
Technical Specifications
Each site installation solution is documented, labeled, and tested before dispatch. The final design is customized to site load, control, enclosure, and communication requirements.
| Parameters | Standard Specs / Customization Scope |
|---|---|
| Supply Voltages | 415V AC 3-Phase / 230V AC Single-Phase / 24V DC Auxiliary Supply |
| Enclosure Type | Wall-mounted or floor-standing, sheet steel powder-coated RAL 7035 or stainless steel SS304/SS316 |
| Ingress Protection | IP54 / IP55 / IP65 as per IS/IEC standards for indoor or outdoor installations |
| Internal Switchgear | Schneider Electric, Siemens, ABB, L&T, Eaton or equivalent components |
| Site Work Scope | Panel mounting, cable termination, IO testing, loop checks, drive trials, commissioning reports and handover support |
| Network Protocols | Modbus RTU / TCP, Profinet, Profibus DP, EtherNet/IP or project-specific communication |
| Safety Compliance | Emergency stop integration, overload protection, isolation, earthing, labeling and tested wiring |
Detailed wiring and assembly view for Site Installation

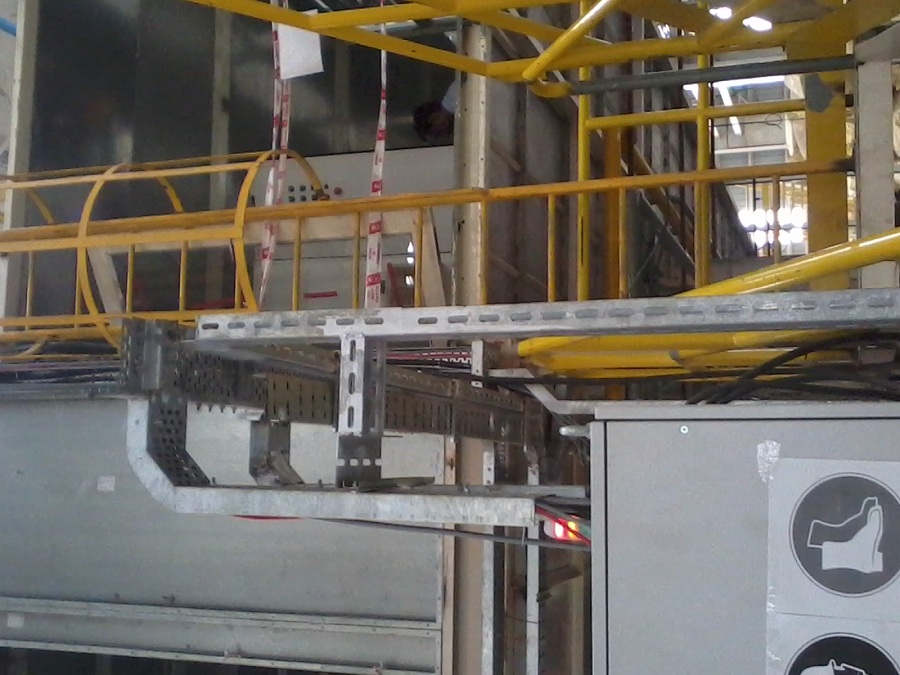

Testing, integration, and commissioning support for Site Installation
