Precision Control for Modulating and Positioning Actuators
Precision Control for Modulating and Positioning Actuators
Actuator Panels by ThreeDots Automation are industry-grade, custom-engineered control systems designed to regulate, coordinate, and monitor electrical, pneumatic, and hydraulic actuators.
Built to withstand demanding environments - Our panels interface directly with PLCs, DCS, and SCADA platforms, facilitating automatic modulation, precise position control, and fast diagnostics.
Key Capabilities
Reliable actuator control panels built for precise movement, machine safety, and consistent industrial operation. Built with clear wiring, tested control logic, and service-friendly layouts for dependable industrial use.
%
Positioning Accuracy
High-precision feedback loops
%
System Integration
PLC, SCADA, DCS compatibility
- Modulating Control: Supports 4-20mA, 0-10V, and fieldbus feedback loops.
- HOA Switches: Features manual Hand-Off-Auto switches for local testing.
- Rugged Construction: IP54/IP55/IP65 steel or SS304/316 enclosures.
- Fault Protection: Short-circuit, overload, and thermal fuse diagnostic protection.
Technical Specifications
Each actuator panels solution is documented, labeled, and tested before dispatch. The final design is customized to site load, control, enclosure, and communication requirements.
| Parameters | Standard Specs / Customization Scope |
|---|---|
| Supply Voltages | 415V AC 3-Phase / 230V AC Single-Phase / 24V DC Auxiliary Supply |
| Enclosure Type | Wall-mounted or floor-standing, sheet steel powder-coated RAL 7035 or stainless steel SS304/SS316 |
| Ingress Protection | IP54 / IP55 / IP65 as per IS/IEC standards for indoor or outdoor installations |
| Internal Switchgear | Schneider Electric, Siemens, ABB, L&T, Eaton or equivalent components |
| Actuator Feedback | Analog 4-20mA position signal, open/close limit switch dry contacts, encoder interface |
| Network Protocols | Modbus RTU / TCP, Profinet, Profibus DP, EtherNet/IP or project-specific communication |
| Safety Compliance | Emergency stop integration, overload protection, isolation, earthing, labeling and tested wiring |

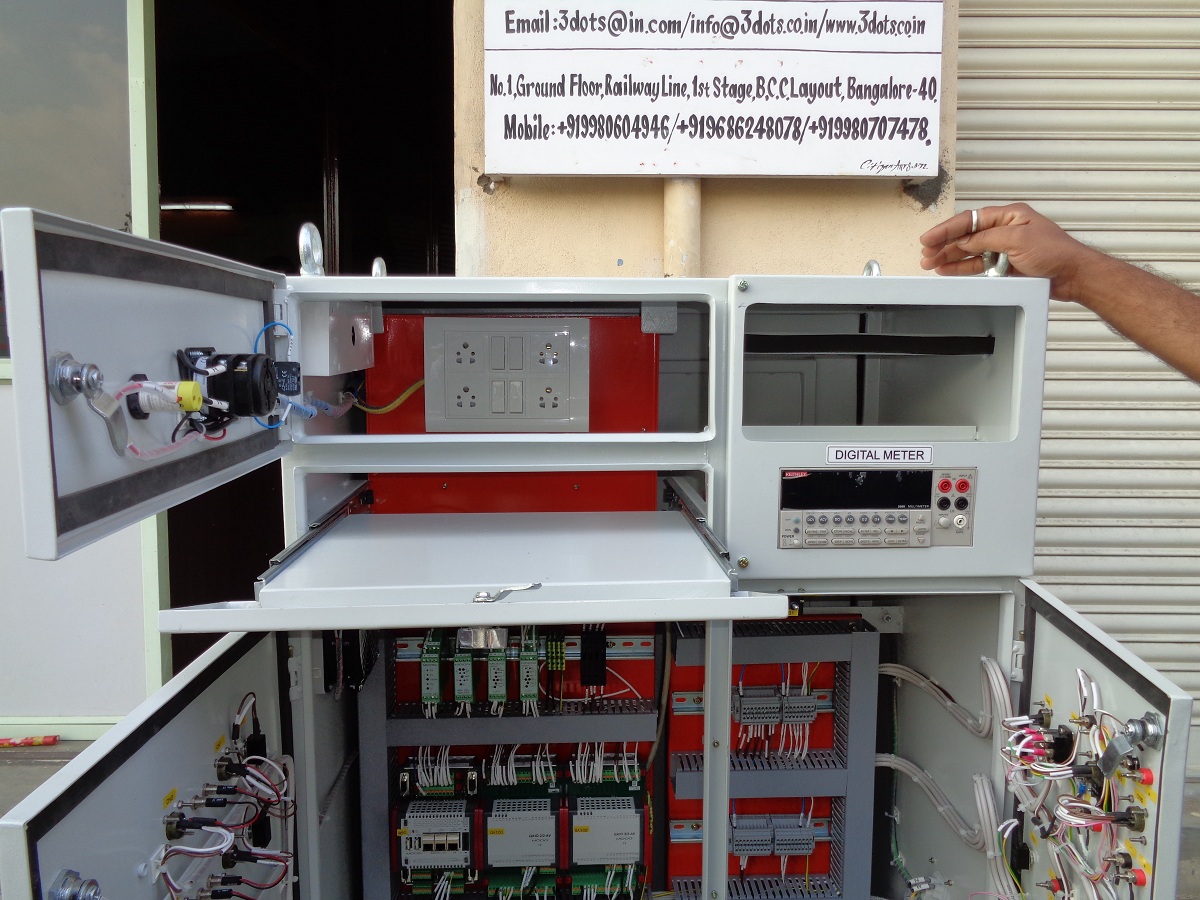

Detailed wiring and assembly view for Actuator Panels

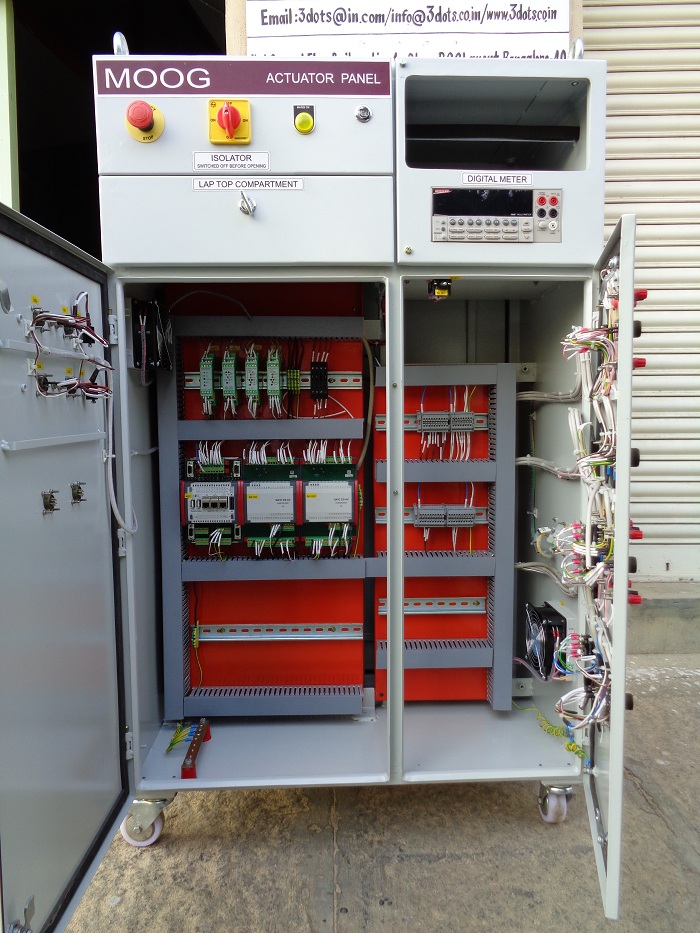

Testing, integration, and commissioning support for Actuator Panels

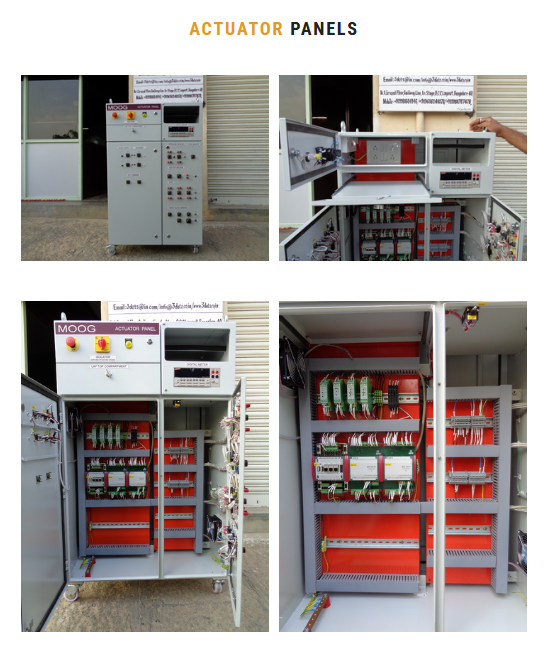

Actuator control panel installation
