Organised Field Wiring and Protected Electrical Termination
Organised Field Wiring and Protected Electrical Termination
Junction Boxes by ThreeDots Automation provide safe, labelled, and serviceable field termination points for sensors, motors, instruments, operator stations, and machine wiring.
Made for clean wiring and easy maintenance - We design junction boxes with suitable terminals, glands, ferruling, earthing, and enclosure protection for reliable field connectivity.
Key Capabilities
Neat and durable junction boxes for organised wiring, field connectivity, and industrial protection. Built with clear wiring, tested control logic, and service-friendly layouts for dependable industrial use.
%
Wiring Clarity
Labeled field termination
%
Protection
Industrial enclosure options
- Terminal Planning: Custom terminal blocks for signals, power, and instrumentation.
- Cable Glanding: Proper gland plates, ferrules, wire markers, and earthing.
- Enclosure Choice: MS powder-coated, stainless steel, FRP, or weatherproof boxes.
- Maintenance Access: Neat layout for troubleshooting and future expansion.
Technical Specifications
Each junction boxes solution is documented, labeled, and tested before dispatch. The final design is customized to site load, control, enclosure, and communication requirements.
| Parameters | Standard Specs / Customization Scope |
|---|---|
| Supply Voltages | 415V AC 3-Phase / 230V AC Single-Phase / 24V DC Auxiliary Supply |
| Enclosure Type | Wall-mounted or floor-standing, sheet steel powder-coated RAL 7035 or stainless steel SS304/SS316 |
| Ingress Protection | IP54 / IP55 / IP65 as per IS/IEC standards for indoor or outdoor installations |
| Internal Switchgear | Schneider Electric, Siemens, ABB, L&T, Eaton or equivalent components |
| Termination Scope | DIN terminals, glands, ferrules, earth bar, cable tags, IP54/IP65 enclosure options |
| Network Protocols | Modbus RTU / TCP, Profinet, Profibus DP, EtherNet/IP or project-specific communication |
| Safety Compliance | Emergency stop integration, overload protection, isolation, earthing, labeling and tested wiring |
Detailed wiring and assembly view for Junction Boxes

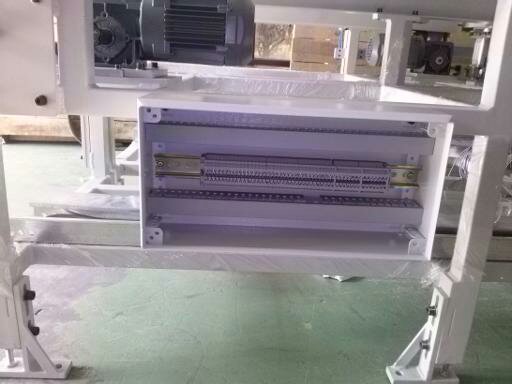

Testing, integration, and commissioning support for Junction Boxes
