High-Accuracy Servo Control for Motion Applications
High-Accuracy Servo Control for Motion Applications
Servo Panels by ThreeDots Automation control servo drives, motors, encoders, motion controllers, safety circuits, and machine interfaces for accurate positioning and synchronized motion.
Built for repeatable motion performance - Our servo panels support precision indexing, torque control, high-speed motion, and integration with PLC/HMI systems.
Servo Drive Wiring
Power, brake, encoder, feedback, and communication wiring.
Motion Control
Position, speed, torque, indexing, and synchronized motion.
Machine Safety
Emergency stop, drive enable, limit switches, and safe stop circuits.
HMI Operation: Recipes, jog mode, homing, alarms, and motion status display.
Get In Touch →Key Capabilities
Servo control panels for motion accuracy, torque control, positioning, and high-speed machinery. Built with clear wiring, tested control logic, and service-friendly layouts for dependable industrial use.
%
Motion Accuracy
Repeatable positioning
%
Drive Integration
Servo and PLC control
- Servo Drive Wiring: Power, brake, encoder, feedback, and communication wiring.
- Motion Control: Position, speed, torque, indexing, and synchronized motion.
- Machine Safety: Emergency stop, drive enable, limit switches, and safe stop circuits.
- HMI Operation: Recipes, jog mode, homing, alarms, and motion status display.
Technical Specifications
Each servo panels solution is documented, labeled, and tested before dispatch. The final design is customized to site load, control, enclosure, and communication requirements.
| Parameters | Standard Specs / Customization Scope |
|---|---|
| Supply Voltages | 415V AC 3-Phase / 230V AC Single-Phase / 24V DC Auxiliary Supply |
| Enclosure Type | Wall-mounted or floor-standing, sheet steel powder-coated RAL 7035 or stainless steel SS304/SS316 |
| Ingress Protection | IP54 / IP55 / IP65 as per IS/IEC standards for indoor or outdoor installations |
| Internal Switchgear | Schneider Electric, Siemens, ABB, L&T, Eaton or equivalent components |
| Servo Control Scope | Servo drives, servo motors, encoder feedback, brake control, motion PLC, HMI, limit switches, safety circuits |
| Network Protocols | Modbus RTU / TCP, Profinet, Profibus DP, EtherNet/IP or project-specific communication |
| Safety Compliance | Emergency stop integration, overload protection, isolation, earthing, labeling and tested wiring |

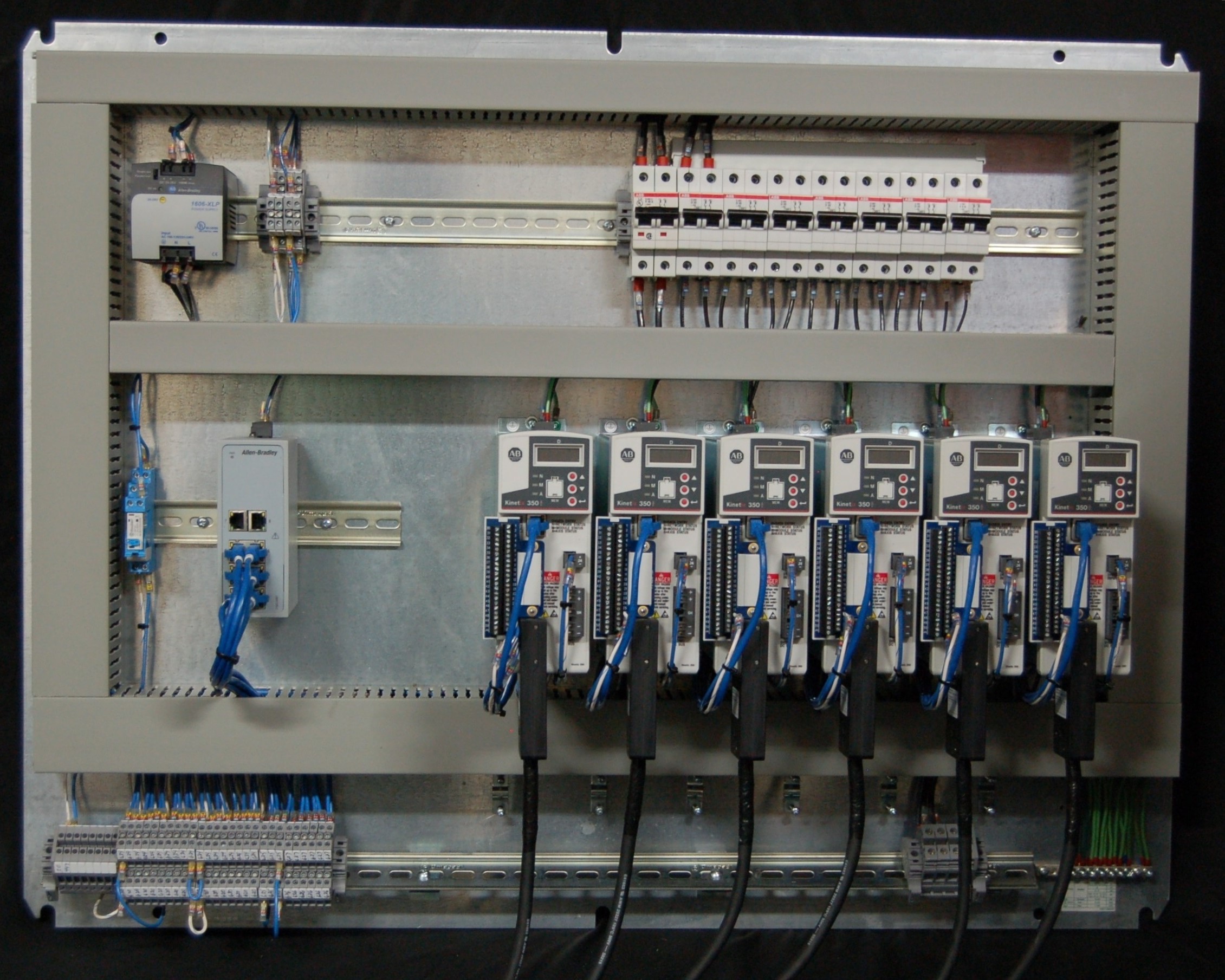

Detailed wiring and assembly view for Servo Panels

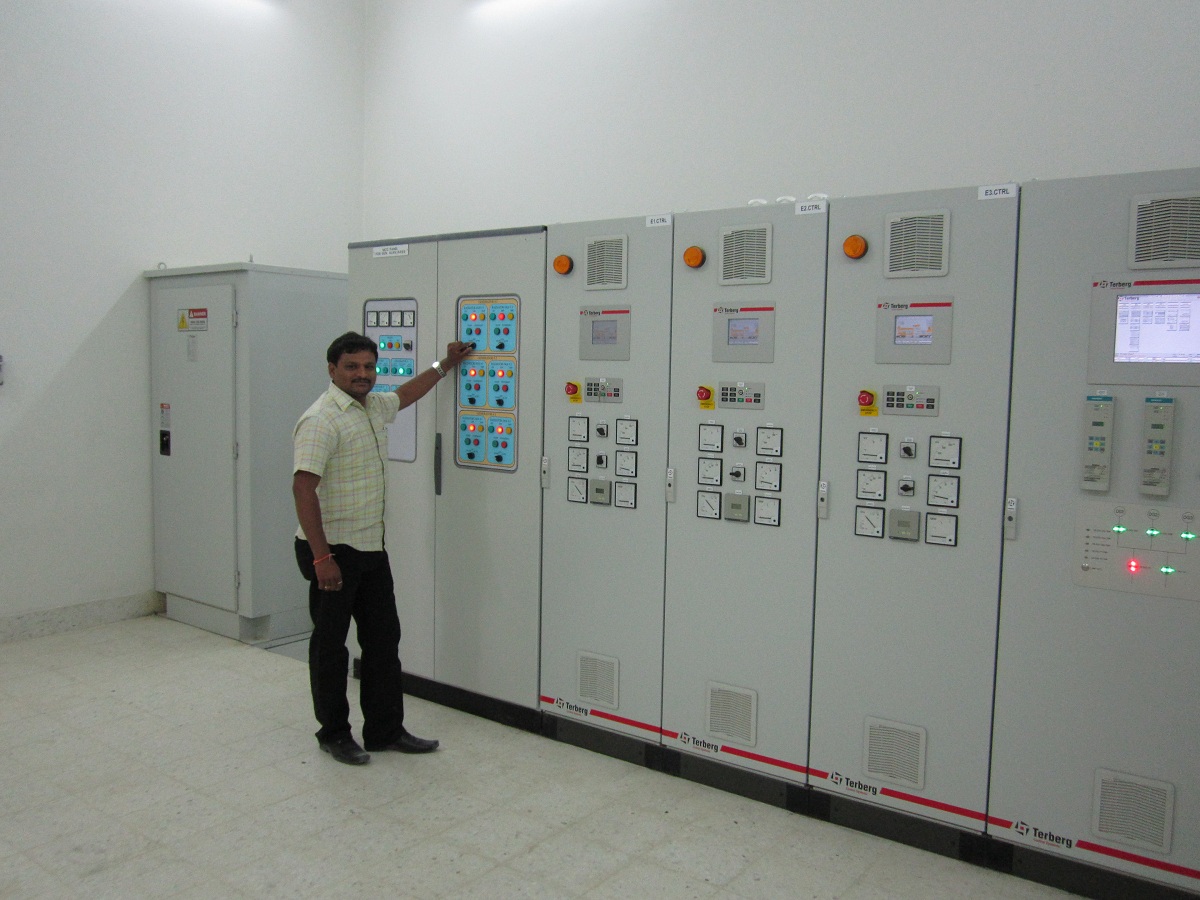

Testing, integration, and commissioning support for Servo Panels
