Visual Production Status for Faster Shop-Floor Response
Visual Production Status for Faster Shop-Floor Response
Andon Display Boards by ThreeDots Automation give operators, supervisors, and maintenance teams instant visibility into machine status, line stoppages, help calls, production counts, and quality alerts.
Designed for high-visibility manufacturing floors - Our Andon solutions connect with PLCs, pushbutton stations, sensors, and plant networks to display actionable information exactly where teams need it.
Key Capabilities
Visual production displays for status alerts, downtime tracking, and faster shop-floor response. Built with clear wiring, tested control logic, and service-friendly layouts for dependable industrial use.
%
Response Visibility
Clear line-level alerts
%
Downtime Tracking
Fast escalation support
- Live Status Display: Shows run, stop, fault, call, and production status.
- PLC Integration: Receives signals from PLCs, sensors, and operator stations.
- Custom Formats: Available in LED, display board, buzzer, tower lamp, and dashboard formats.
- Shop-Floor Durability: Built for industrial visibility, reliable wiring, and easy maintenance.
Technical Specifications
Each andon display boards solution is documented, labeled, and tested before dispatch. The final design is customized to site load, control, enclosure, and communication requirements.
| Parameters | Standard Specs / Customization Scope |
|---|---|
| Supply Voltages | 415V AC 3-Phase / 230V AC Single-Phase / 24V DC Auxiliary Supply |
| Enclosure Type | Wall-mounted or floor-standing, sheet steel powder-coated RAL 7035 or stainless steel SS304/SS316 |
| Ingress Protection | IP54 / IP55 / IP65 as per IS/IEC standards for indoor or outdoor installations |
| Internal Switchgear | Schneider Electric, Siemens, ABB, L&T, Eaton or equivalent components |
| Display and Signals | LED display, numeric counters, stack lamps, buzzers, relay inputs, PLC/Modbus connectivity |
| Network Protocols | Modbus RTU / TCP, Profinet, Profibus DP, EtherNet/IP or project-specific communication |
| Safety Compliance | Emergency stop integration, overload protection, isolation, earthing, labeling and tested wiring |

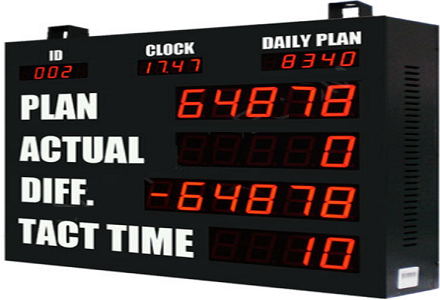

Detailed wiring and assembly view for Andon Display Boards

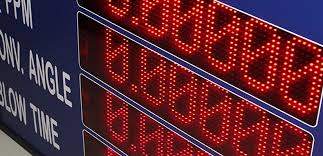

Testing, integration, and commissioning support for Andon Display Boards
